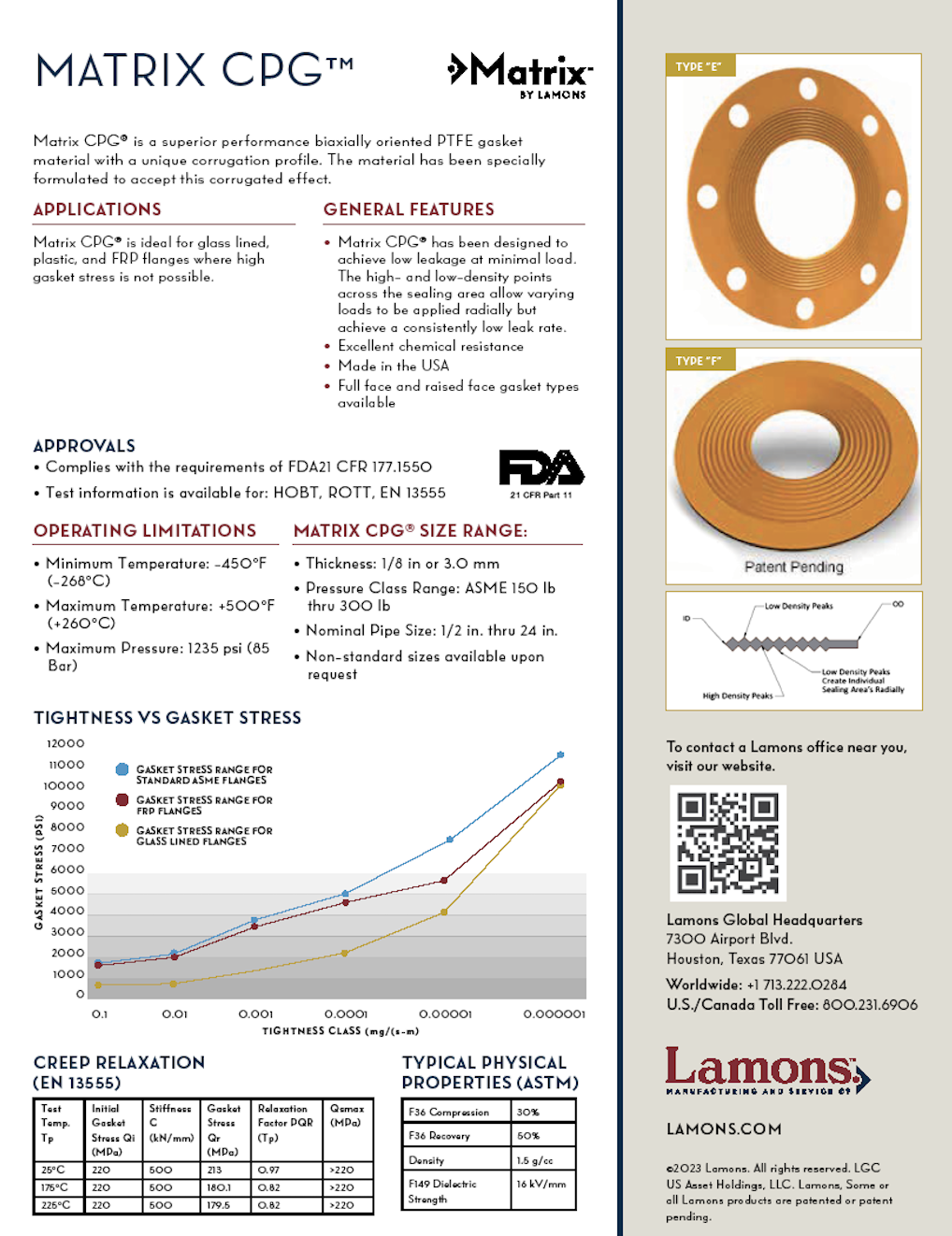

Data Sheet

Matrix CPG™

Matrix CPG® is a superior performance biaxially oriented PTFE gasket material with a unique corrugation profile. The material has been specially formulated to accept this corrugated effect.


Matrix CPG® is ideal for glass lined, plastic, and FRP flanges where high gasket stress is not possible.

General Features

  • Matrix CPG® has been designed to achieve low leakage at minimal load. The high- and low-density points across the sealing area allow varying loads to be applied radially but achieve a consistently low leak rate.
  • Excellent chemical resistance
  • Made in the USA
  • Full face and raised face gasket types available


  • Complies with the requirements of FDA21 CFR 177.1550
  • Test information is available for: HOBT, ROTT, EN 13555

Operating Limitations

  • Minimum Temperature: -450°F (-268°C)
  • Maximum Temperature: +500°F (+260°C)
  • Maximum Pressure: 1235 psi (85 Bar)

Matrix CPG Size Range

  • Thickness: 1/8 in or 3.0 mm
  • Pressure Class Range: ASME 150 lb thru 300 lb
  • Nominal Pipe Size: 1/2 in. thru 24 in.
  • Non-standard sizes available upon request
